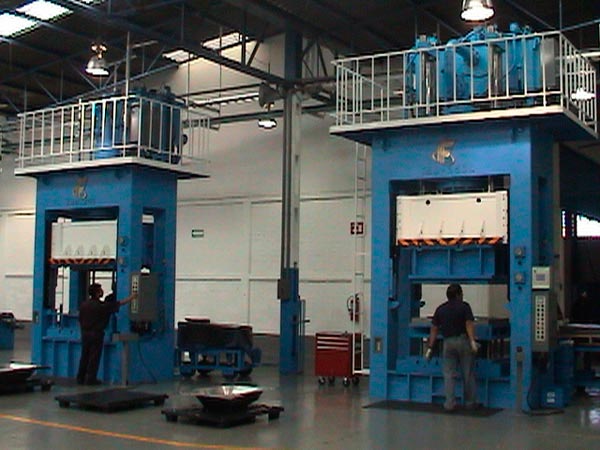

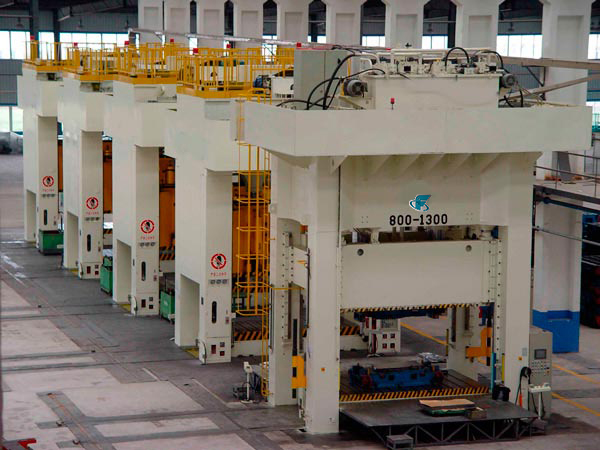

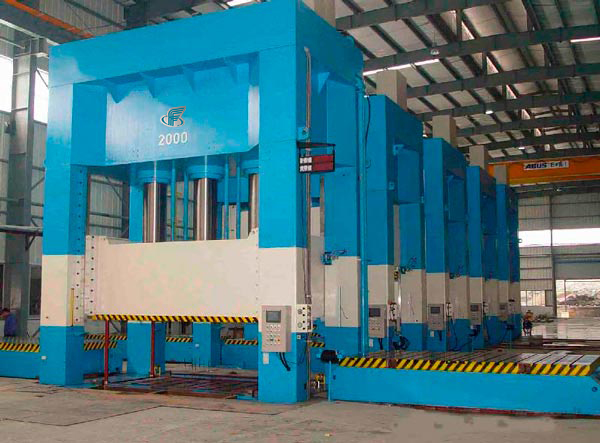

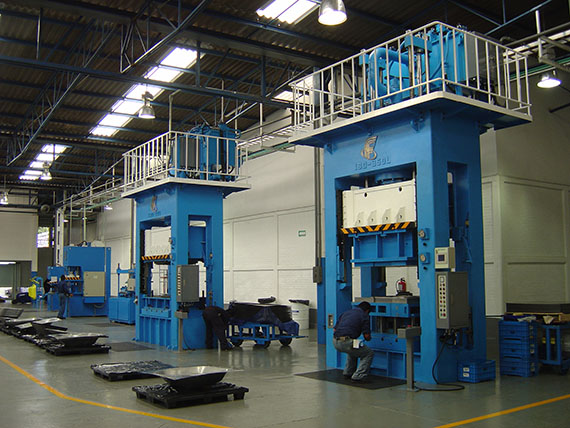

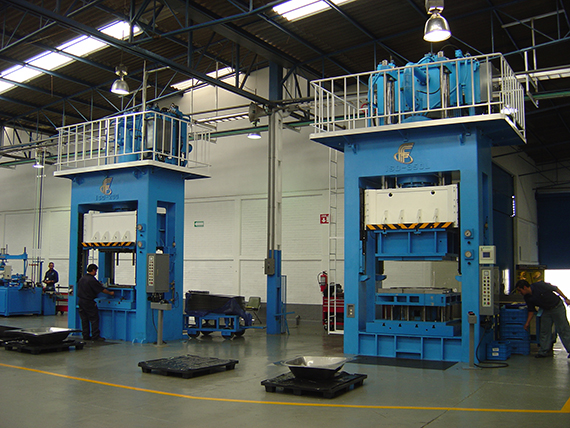

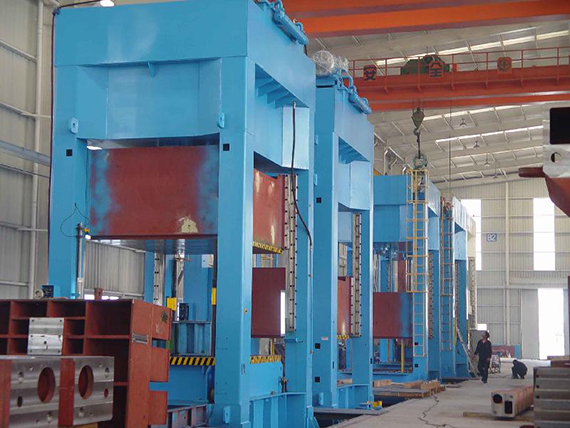

STRAIGHT SIDE TYPE

This type of presses manufactured by Fluidica, has a design that makes them special for sausage, stamping and punching of great precision, these machines can withstand rough processes that can not be done mechanically. The high precision engraving makes it safe and reliable.



Its design is a control base operated by pushbutton and logic circuits, make our presses easy to operate and to maintain them. His long career and the hydraulic cushion give him the necessary tools for the most complex jobs.

The lubrication system keeps the surfaces of the guides in excellent condition, offers a smooth and free movement.

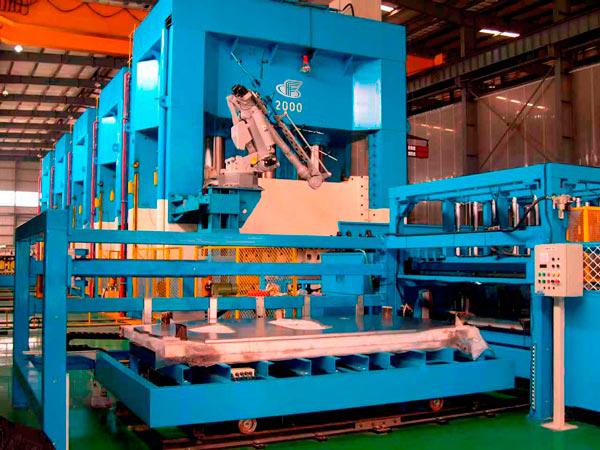

The machine can be combined with a system of automatic operation of loading and unloading of materials, when removing the plate for a quick change of die and clamps automatically. Position information in mm or in inches, pressure, tonnage, speed, cycles, oil temperature, working time, press or system errors, PLC inputs and outputs, etc. (optional).



Screen of all movements in manual. Energy saving system, turn off the press after a while without use. Programming personalized recipes to your process. Creation of screens to your needs. Protective, mechanical and infrared grilles. Hot plates with temperature control (optional).



Communication with additional processes. Interfaces with programmable automata. Special controls Special dimensions up to 6 meters by 3 meters of table. Tons from 100 to 3000 Tons.







Some characteristics of our presses are:

· Access to work area by 2 or 4 sides.

· Complete tonnag in any point of the stroke.

· Extra thick plates with "T " slots.

· 8 points of guides with bronze SAE-62.

· Mechanical structure relieved efforts.

· "T" Stand with buttons according ANSI B11.2 Standards.

· Oil level and temperature indicator.

· High speed for approach, work and return.

· Adjustable waiting time in lower position.

· Control by PLC Siemens.

· Hydraulic cushion in lower plate (optional).

· Hydraulic tank of easy access on top of the press.

· Frame with Tie Rod columns.

Hydraulic Presses:

ANSI B11.2., JIS.

Hydraulic Units:

 ANSI-NFPA-T3.163 R1-97.

Hydraulic

Systems:

 JIC-H-73.

Electrical Standard for Machinery: ANSI/79-1994.

Welding in Hydraulic Frame Presses:

AWS-D14.5-97.
